Trak Racer Quad-Channel Bass Shaker & Amplifier Kit with Universal Mounting Plates – Simulation Vibration & Immersion System

Experience more immersion with the Trak Racer Quad-Channel Bass Shaker & Amplifier Kit, a premium tactile feedback solution designed to reproduce low-frequency vibration so you can physically feel what’s happening in-game.

What this kit does (and why mount it to your controls): Bass shakers are tactile transducers that convert audio/effects signals into vibration. By mounting them directly to your pedals, shifter, and handbrake, the feedback is delivered exactly where your hands and feet interact with the car—so ABS pulses, wheel slip, drivetrain load, kerb hits, and surface texture feel immediate and precise, instead of being diluted through the seat or cockpit frame.

Transform how your sim rig feels with compact 10W bass shakers, purpose-built to add realistic vibration feedback directly to your pedals, shifter, and handbrake. Instead of sending all vibration through your seat or chassis, these shakers place feedback exactly where your hands and feet interact with the car—for deeper immersion and better control.

Engineered for sim racing, driving simulation, flight simulation, FPS gaming, and music, this system allows you to feel engine and exhaust rumble, kerbs, bumps, runway vibration, turbulence, gunfire, explosions, recoil, and deep bass — one of the most cost-effective upgrades for true simulation immersion.

Designed by simulation specialists since 2008 and trusted through partnerships with the Alpine Formula 1 Team, Porsche, and Airbus Aircraft, this kit reflects motorsport-grade engineering refined for serious simulators.

Designed for Simulation, Gaming & Low-Frequency Immersion

Unlike basic vibration motors or low-quality mono bass shaker kits, this Trak Racer system uses a dedicated 4-channel Class-D amplifier paired with two purpose-built tactile transducers, delivering clean, controlled, low-frequency vibration exactly where you need it.

Sim Racing: engine RPM, exhaust resonance, kerbs, bumps, wheel slip
Flight Simulation: runway rumble, turbulence, touchdown impact
FPS & Gaming: gunfire, explosions, recoil, environmental effects
Music & Media: deep bass you can physically feel

Ideal for titles such as iRacing, Assetto Corsa, Assetto Corsa Competizione, rFactor 2, F1 23 / F1 24, Microsoft Flight Simulator, DCS World, Call of Duty, Battlefield, and other first-person shooter and simulation games.

What’s Included in the Kit

2 × TR-BSA10 10W Bass Shakers (Tactile Transducers)
1 × Trak Racer TR-BSA4A-KIT Quad-Channel Bass Shaker Amplifier
2 × Universal Bass Shaker Mounting Plates – compatible with Trak Racer and non-Trak Racer cockpits
2 × 2 m / 6.374 ft Speaker Cables
Low-resistance cable for clean, distortion-free low-frequency power delivery
Audio input cables

Mounting Hardware & Tools Included

All required mounting hardware and tools are included for a secure and hassle-free installation. The kit comes with dedicated 10W bass shaker mounts, a full range of M8 and M3 fasteners, washers, and nylon nuts, along with the necessary tools to assemble and install the system on your cockpit, pedals, shifter, or handbrake without needing additional hardware.

This complete kit allows secure installation on sim racing seats, cockpit frames, motion platforms, gaming rigs, and non-Trak Racer simulators.

Expandable System – Optional Additional Shakers

The included quad-channel amplifier supports up to four bass shakers. You can optionally expand this system by adding 2 more TR-BSA10 bass shakers (sold separately) to create a four-point tactile feedback system.

This enables advanced front/rear or left/right vibration zones, ideal for sim racing, flight simulation, and gaming environments where directional tactile feedback enhances realism.

Note: Optional expansion components are sold separately.

Quad-Channel Amplifier – Clean, Controlled, High-Quality Output

At the heart of the system is the TR-BSA4A-KIT quad-channel Class-D amplifier. With four independent output channels, adjustable low-pass filtering, and 10 W RMS per channel (Peak: 20 W per channel) @ 8Ω, it allows precise tuning of vibration intensity and frequency for realistic tactile feedback.

With a 30–100 Hz frequency response and a 40–100 Hz adjustable low-pass range, the amplifier is optimized for controlled low-frequency effects, delivering balanced power, minimal distortion, and excellent tactile clarity.

Specifications – TR-BSA4A-KIT Amplifier

Model	BSA4A
Output channels	4
Input channels	4 × RCA
Output power @ 8Ω	10 W RMS per channel, Peak: 20 W per channel
Input sensitivity	350 mV
Frequency response	30–100 Hz ±3 dB
Variable low-pass adjustment	40–100 Hz
Total harmonic distortion (mono)	0.05%
Signal-to-noise ratio	95 dB @ 100 Hz (A-weighted)
Power requirements	115–230 V AC, 50/60 Hz or 120–240 V AC, 50/60 Hz
Max power consumption	80 W
Amplifier class	Class-D

Specifications – TR-BSA10 Bass Shaker (Each)

Specification	Details
Product model	TR-BSA10
Product type	Low-frequency tactile transducer / bass shaker
Outer dimensions	98 × 98 × 31 mm
Rated AC impedance	8 Ω ±10% @ 22 °C
Rated DC resistance	7.2 Ω ±3% @ 22 °C
Resonant frequency (F₀)	33 Hz ±10%
Effective frequency range	F₀ – 100 Hz
Nominal input power	10 W
Maximum input power	20 W
Buzz & rattle test	8 V, 20–200 Hz
Operating condition	8 Vrms sine wave at 20–200 Hz, normal operation without distortion
Polarity	Positive terminal causes upward magnetic movement when 1.5 V DC is applied
Magnet	Ø60 × Ø32 × 8 mm
Product weight	0.35 kg

Feel the engine. Feel the bumps. Feel the shots. Feel the bass.
Built by sim racers. Proven in motorsport. Engineered for immersion.

Why Add Bass Shakers to Pedals?

In real race cars, critical information comes through your feet. Pedal-mounted bass shakers recreate this by delivering localized feedback you can feel instantly:

ABS activation through the brake pedal
Wheel lockups and threshold braking cues
Traction loss and wheelspin through the throttle
Road texture, kerbs, and bumps under your feet

This direct feedback helps you react faster and modulate inputs more precisely—especially under heavy braking and corner exit.

Bring Your Shifter to Life

Mounted to a shifter, a 10W bass shaker adds:

Mechanical engagement feel during gear changes
Drivetrain vibration under load
Engine and RPM feedback synced to the car

Every shift feels more physical and satisfying, replacing the “dead” feel of static hardware.

Realistic Handbrake Feedback

For drifting and rally setups, handbrake-mounted shakers provide:

Rear wheel slip feedback
Surface vibration on gravel, dirt, or tarmac
Immediate tactile response when locking the rears

It adds confidence and realism when timing slides or tight hairpins.

Small Power, Big Detail

With a 10W output, these shakers are ideal for control-mounted applications:

Strong, detailed vibration without overwhelming force
Low noise compared to large chassis shakers
Suitable for apartments and shared spaces
Minimal power requirements and easy to drive with compact amplifiers

When paired with software like SimHub, each shaker can be independently tuned by effect, frequency, and intensity.

Key Benefits

Localized feedback exactly where it matters
Improved immersion and car control
Easy mounting to pedals, shifters, and handbrakes
Clean, precise vibration without muddy overlap
Realistic feedback inspired by real race cars

Ideal For

Sim racers upgrading beyond seat-only haptics
GT, Formula, Rally, and Drift drivers
Anyone wanting more realism without adding noise or bulk

Gaming PCs & Accessories

Trak Racer V2 Pro 2CH 200W Low-Frequency Class-D Amplifier and Bass Shaker Kit

49" 144Hz DFHD Super Ultrawide Gaming Monitor

Trak Racer V2 Pro 2CH 200W Low-Frequency Class-D Amplifier and Bass Shaker Kit with Rig Mount

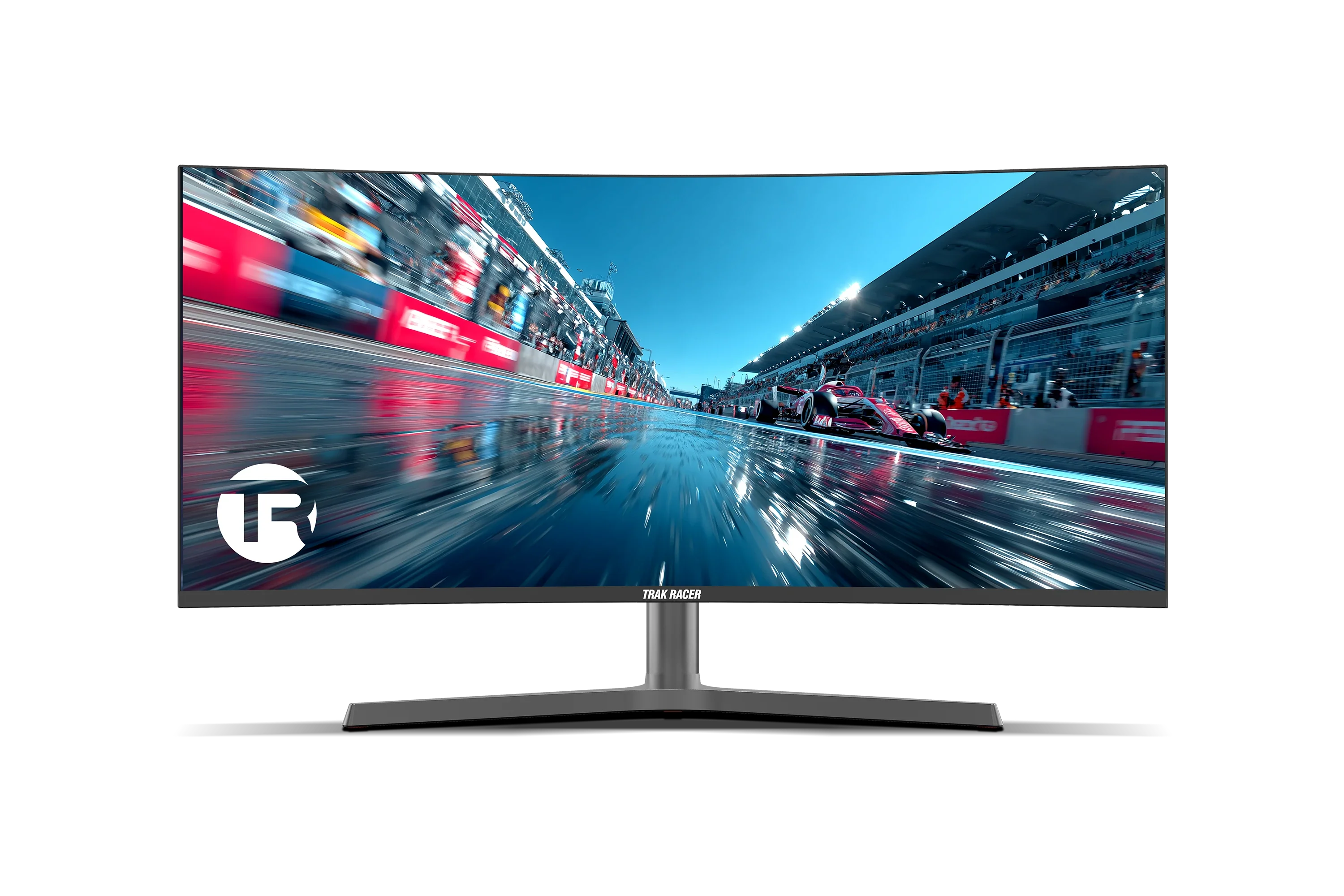

34" Ultrawide UWQHD 165Hz 1ms QLED 3440x1440 21:9 Curved Gaming Monitor
